PRI VoIP Gateway TE200

TE200 is a dual-port VoIP E1/T1/J1 gateway (VoIP to E1/T1/J1, and E1/T1/J1 to VoIP)

that supports up to 60 concurrent calls. TE200 offers SMBs cost effective additions

to a legacy telephone system to bring the true benefits of VoIP.

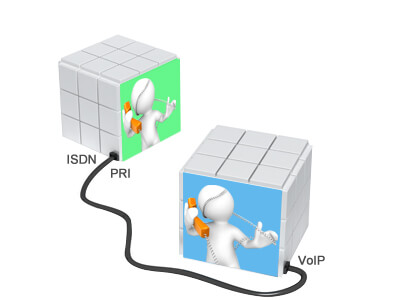

te200 benefits



Benefits

  • Software configurable E1/T1/J1 ports
  • Support PRI, MFC R2, SS7, E&M
  • Easy-to-navigate GUI
  • Cost-effective call routing
  • Simple installation and management
  • Interoperable with Elastix and Lync Server
  • Compatible with various ISDN PBX, IP-PBX, and softswitch
  • Low power consumption for your green office







































Specification



E1/T1/J1 Ports 2 (Support PRI, MFC R2, SS7, E&M)
Protocol SIP (RFC3261)
Transport Protocol UDP, TCP, TLS, SRTP
DTMF RFC2833, SIP INFO, In-band
Codec G.711 (alaw/ulaw), G.722, G.726, G.729A, GSM, ADPCM, Speex
Echo Cancellation ITU-T G.168 LEC
Network Protocol FTP, TFTP, HTTP, HTTPS, SSH
Network DDNS, Firewall, PPPoE, Static IP, QoS, Static Route
PRI switch types Euro ISDN, nation, Q.SIG
CAS MFC R2 (Argentina, Brazil, China, Czech Republic, Colombia, Ecuador, Indonesia, ITU, Mexico, Philippines, Venezuela)
SS7 ITU, ANSI, China
LAN 1 10/100/1000Mbps
WAN 1 10/100/1000Mbps
USB 1
Dimensions (L × W × H) (mm) 213 x 160 x 44
Power Supply AC 100-240V (12V 2A)
Operation Range 0°C to 40°C, 32°F to 104°F
Storage Range -20°C to 65°C, -4°F to 149°F
Humidity 10-90% non-condensing
